post #11 of 24 Old 01-09-2007, 05:18 PM
Daz
Banned

Tidy Davey, its so clean. :)
Daz is offline
Sponsored Links
Advertisement

post #12 of 24 Old 01-11-2007, 08:32 AM Thread Starter
New Member

davethetester's Avatar

thanks Daz. I think the cleanliness is down to the huge population of apple snails. There's 3 adults and 50 odd juveniles
davethetester is offline
post #13 of 24 Old 01-11-2007, 09:28 AM
Banned

That looks smashing David.
Dizlal is offline
post #14 of 24 Old 01-14-2007, 03:30 AM Thread Starter
New Member

davethetester's Avatar

Thanks Nandoposis.

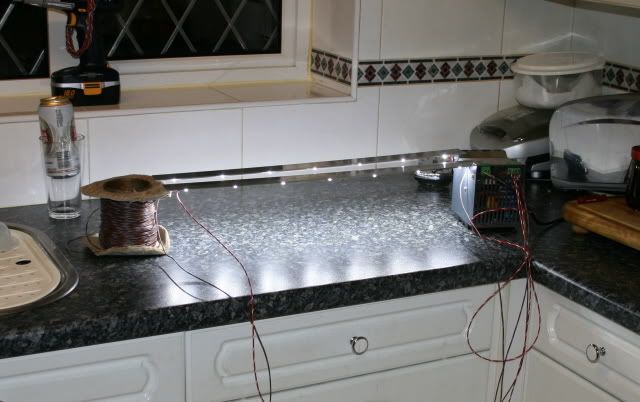

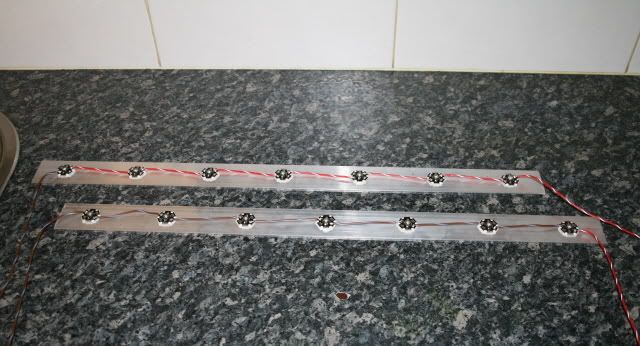

I've done a bit more, here's 2 off 24" 7 LED light bars



This is more like it. They are very bright. Each bar has a max of 21W. To achieve that they'd need to run at 3.7V per LED but I'm only running around 3.4V for now.



Even with all the kitchen lights on they give my cam some probs with contrast.



Just got to fit them into some sort of hood/luminaire arrangement and we're off.
davethetester is offline
post #15 of 24 Old 01-14-2007, 08:14 PM
New Member

Jaysn's Avatar

Very nice! What are you using as a moisture barrier, or is one even needed with those LEDs?
Jaysn is offline
post #16 of 24 Old 01-27-2007, 01:35 PM Thread Starter
New Member

davethetester's Avatar

Thanks Jaysn. I've got a fairly tight fitting plastic anti-condensation cover between the tank and the LED's. I've done abit more since I last posted.

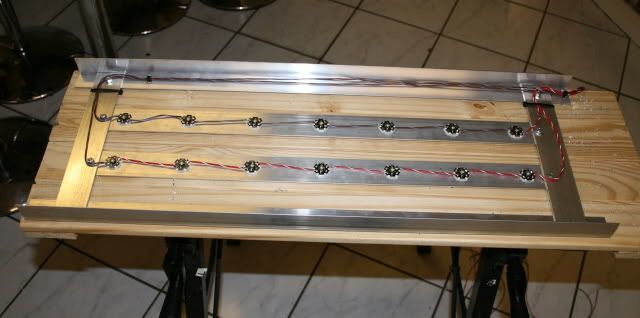

Here they are in the mounting frame

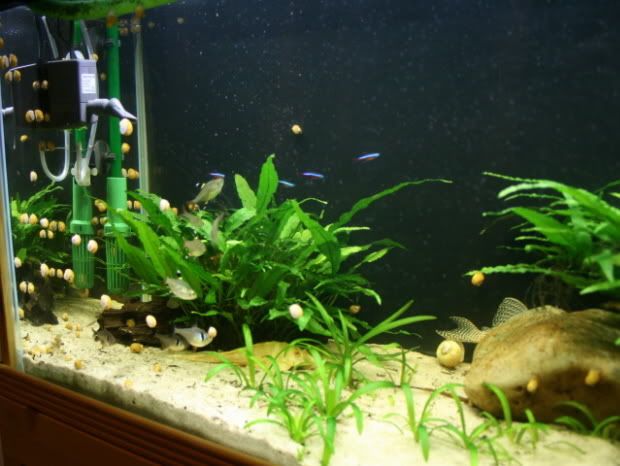

and on the tank



brighter than the mkI by far



Here you can see the bars bending upwards as they are getting hotter and consequently expanding more than the frame. You can also see the anti-condensation cover.

davethetester is offline
post #17 of 24 Old 02-08-2007, 06:43 PM
New Member

magic_marty's Avatar

you could add some lower wattage blue leds in between the white ones so it would give off a moonlight affect for the night.You would have to put it on a seperate circuit so both the white and blue wouldn't light at the same time.
prolly use a spdt switch to perform it.
magic_marty is offline
post #18 of 24 Old 03-15-2007, 07:35 AM
New Member

AF_medic's Avatar

Aren't those the same LED's that PFO is using in their Solaris lights?

Smile, it makes people wonder what you're up to.
AF_medic is offline
post #19 of 24 Old 12-21-2007, 07:59 AM
New Member

titusoates's Avatar

Any update on your led lighting?? I am looking to do something similar on my 48" reef tank; so question; what power supply did you use, and have you solved the heat problem? this fits a 30" how many leds for the 48"

I have found a few websites that may be of interest
http://www.ashevillemarine.org/bb/vi...er=asc&start=0
http://www.aquariumpros.ca/forums/sh...ad.php?t=29354

Kevin
titusoates is offline
post #20 of 24 Old 12-21-2007, 06:51 PM
This thread has gone silent for a very long time.

Used to be a source on Ebay out of Hong Kong that sold high powered 5w and 7w bulbs that are used in the Solaris project. Problem with it all is that you don't even see Solaris being advertised anymore. I think the LED fad for reef lighting has worn off. But look for that source on Ebay as they sold everything on the cheap needed to make your own set up. I think it was around $1 per LED or less.
caferacermike is offline
